Diamond Anatomy Explained: Every Part of a Diamond and Why It Matters

When most people look at a diamond, they see sparkle, shape and size. A jeweler looks deeper.

Beneath that sparkle is a precise arrangement of polished surfaces and proportions designed to interact with light.

The relationship between the diamond's table, crown, pavilion, girdle and individual facets helps determine how lively, bright and visually appealing a diamond appears.

Understanding those parts can make diamond shopping much easier, particularly when comparing stones for an engagement ring .

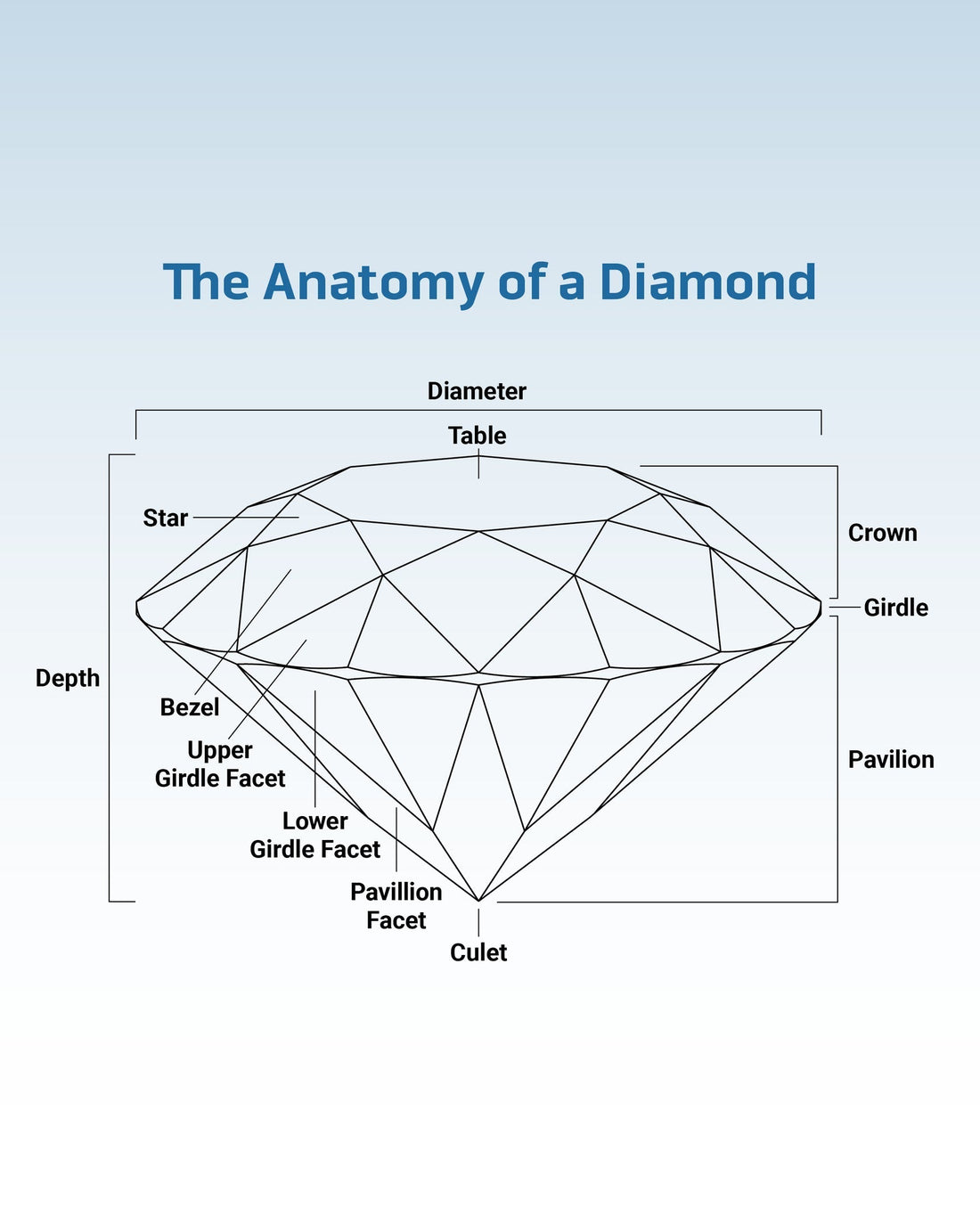

Diamond Anatomy at a Glance

1. The Table

The table is the large, flat facet on the very top of a polished diamond.

It is usually the easiest part of a diamond to identify when looking straight down at the stone.

Because it is a major pathway through which light enters and exits the diamond, table size works together with crown angle, pavilion angle and total depth to influence the stone's visual performance.

A larger table is not automatically better, and a smaller table is not automatically better. The goal is balance among the diamond's proportions.

2. Table Percentage

Diamond reports often express table size as a percentage.

Table percentage compares the width of the table with the overall width of the diamond.

This number can be useful when comparing stones, but it should not be evaluated in isolation.

3. The Crown

The crown is the upper portion of the diamond between the girdle and the table.

When viewed from the side, the crown slopes upward from the girdle toward the table.

The crown contains multiple facets that help break white light into spectral colors and contribute to the visual combination of brightness and fire.

4. Crown Angle

Crown angle describes the angle formed by the crown facets relative to the girdle plane.

In a round brilliant diamond, crown angle works closely with pavilion angle and table size.

Rather than trying to choose a diamond based on one supposedly perfect number, it is better to evaluate how those measurements complement each other and how the finished stone actually looks.

5. Crown Height

Crown height describes how tall the crown is above the girdle.

A diamond's crown height can influence its side profile, overall depth and how its upper facets interact with light.

6. Star Facets

Star facets are triangular facets positioned around the table on many brilliant-style diamond cuts.

They contribute to the pattern created across the top of the stone and work together with surrounding crown facets.

7. Bezel or Kite Facets

The larger crown facets extending between the table area and girdle are commonly called bezel facets or kite facets because of their shape.

These facets contribute substantially to the light pattern visible when a brilliant-cut diamond is viewed face-up.

8. Upper Girdle Facets

Upper girdle facets sit around the outer portion of the crown near the girdle.

Their shape and placement help complete the diamond's crown facet pattern and contribute to the visual transitions seen as the diamond moves.

9. The Girdle

The girdle forms the outer perimeter of the diamond at its widest point.

It separates the crown above from the pavilion below.

The girdle is particularly important in jewelry because this is usually the region where prongs or other setting components grip the diamond.

In some diamonds, identifying information or a grading-report number may be laser-inscribed on the girdle and visible under magnification.

10. Girdle Thickness

Girdles can vary in thickness around a diamond.

A very thin girdle may potentially be more vulnerable at certain points, while an unnecessarily thick girdle can add weight where it contributes relatively little to face-up size.

As with most diamond characteristics, the entire stone should be evaluated rather than focusing only on one measurement.

11. The Pavilion

The pavilion is the lower portion of the diamond extending from the girdle toward the bottom point or culet.

Although much of the pavilion may be hidden once a diamond is mounted in a ring, it plays an enormous role in the way the diamond handles light.

Proper pavilion geometry helps redirect light back upward through the crown toward the viewer.

12. Pavilion Angle

Pavilion angle is one of the most important proportions affecting the appearance of a round brilliant diamond.

If pavilion proportions work poorly with the rest of the diamond, more light may escape through the stone rather than returning toward the viewer.

This is part of the reason two diamonds with similar color, clarity and carat weight can look noticeably different beside each other.

13. Pavilion Depth

Pavilion depth measures the vertical depth of the pavilion relative to the diamond's width.

Pavilion depth interacts with crown height and overall proportions to help determine the total depth of the diamond.

14. Pavilion Main Facets

Pavilion main facets are large facets extending from the girdle toward the culet on the underside of a brilliant-cut diamond.

Their angles are particularly important in controlling how light travels through the stone.

15. Lower Girdle Facets

Lower girdle facets are narrow facets positioned between the pavilion mains along the lower perimeter of the diamond.

Their length and proportions influence the face-up facet pattern and the appearance of flashes as a diamond moves.

16. The Culet

The culet is located at the very bottom of a diamond.

In many modern brilliant-cut diamonds, the pavilion facets meet at what visually appears to be a point. In other diamonds, the culet may be a very small polished facet.

A larger culet can sometimes be visible through the table when looking straight down into the diamond.

17. What Are Diamond Facets?

A facet is a flat, polished surface cut onto a diamond.

Facets act like tiny mirrors and windows, directing light throughout the stone.

Their number, angles, symmetry and placement help create the distinctive brightness, contrast and flashes associated with different diamond cuts.

18. How Many Facets Does a Round Brilliant Diamond Have?

A traditional round brilliant diamond commonly has 57 facets when there is no polished culet facet and 58 when the culet itself is faceted.

Other diamond shapes and cutting styles use different facet arrangements.

More facets do not automatically mean more sparkle. What matters is how the facets are positioned and how effectively the entire cut works with light.

19. Total Diamond Depth

Total depth measures the diamond vertically from the table area to the bottom of the stone.

It is generally expressed as a percentage of the diamond's average width.

Depth matters because weight hidden in excessive vertical depth may make a diamond appear smaller face-up than another stone of similar carat weight.

20. Why Two Diamonds of the Same Carat Weight Can Look Different in Size

Carat measures weight—not visible diameter.

Imagine two diamonds that both weigh exactly one carat.

If one carries more of its weight vertically in a deeper pavilion or thicker girdle, it may have a smaller visible footprint when viewed from above.

Another diamond may distribute its weight differently and appear larger across the finger.

This is especially relevant when comparing elongated shapes such as elongated oval diamonds , elongated radiant diamonds and elongated cushion diamonds .

Diamond Anatomy and Brilliance

Brilliance generally refers to the white-light brightness seen from a polished diamond.

A diamond's facet arrangement and proportions affect whether light entering the stone is efficiently returned toward the viewer or escapes in less desirable directions.

This is why cut quality is so important to appearance.

Diamond Anatomy and Fire

Fire refers to flashes of spectral color visible as white light is dispersed.

Crown facets play an important role in this dispersion.

Lighting conditions also affect how much fire you see, which is why a diamond can look different under showroom lighting, sunlight, office lighting and soft indoor illumination.

Diamond Anatomy and Scintillation

Scintillation describes the pattern of bright and dark flashes that appears when the diamond, light source or observer moves.

The size, position and relationship of facets strongly influence this pattern.

Scintillation is one of the reasons evaluating a diamond in motion can be more informative than looking only at a still photograph.

What Is Light Leakage in a Diamond?

Light leakage is a term commonly used when light entering a diamond exits through areas where it contributes less effectively to face-up brightness.

Some leakage occurs in essentially every real-world diamond, but excessive leakage can make portions of a diamond appear duller or less lively.

Pavilion proportions and overall facet relationships are especially important in controlling how light is returned.

Diamond Anatomy vs. Diamond Cut

Diamond anatomy describes the physical components of the stone.

Diamond cut describes how successfully those components have been proportioned, shaped, polished and aligned to create the finished diamond.

These concepts are closely connected, but they are not exactly the same.

Does the Highest Cut Grade Always Mean the Most Beautiful Diamond?

A cut grade can be a valuable screening tool, but diamonds should not be reduced to a single line on a grading report.

Diamonds with similar report characteristics can still have different visual personalities because multiple proportions, facet relationships, inclusions and optical patterns interact.

For a well-cut diamond, differences among strong grading categories may also be far less obvious in normal wear than they appear when comparing laboratory specifications.

Does Diamond Shape Change Its Anatomy?

Yes.

All polished diamonds have some version of a crown, girdle and pavilion, but facet patterns differ considerably among diamond shapes and cutting styles.

Round brilliant, oval, radiant, cushion, emerald and pear-shaped diamonds can therefore produce very different visual patterns.

Shape is one of the first decisions many couples make when shopping for an engagement ring.

Brilliant Cuts vs. Step Cuts

Many popular diamond shapes use variations of brilliant-style faceting, which tends to produce numerous smaller flashes of light.

Step-cut diamonds, such as emerald cuts, use longer, more linear facets that create a different optical appearance sometimes described as a hall-of- mirrors effect.

Neither is inherently better. They simply create different aesthetics.

Does a Lab-Grown Diamond Have the Same Anatomy?

Yes. Once cut and polished, laboratory-grown diamonds use the same general cutting concepts and facet anatomy as natural diamonds.

A lab-grown round brilliant diamond can have a table, crown, girdle, pavilion, culet and the same basic facet arrangement as a natural round brilliant diamond.

The major distinction between the two is origin.

For more detail, see:

• Are Lab-Grown Diamonds Real?
• Lab-Grown vs. Natural Diamonds
• Lab-Grown Diamonds at Christopher Fine Diamonds

Can You Tell a Real Diamond From Its Anatomy?

Not reliably by anatomy alone.

Diamond simulants can also be faceted into shapes that resemble diamond. Professional identification may require magnification and specialized testing equipment.

If you're researching a stone you already own, read our guide: How Can You Tell If a Diamond Is Real?

How Diamond Anatomy Affects an Engagement Ring

Diamond proportions don't exist independently from the ring.

The diamond's diameter, depth, girdle and overall geometry influence the setting needed to hold it safely and beautifully.

A deeper stone may require a different head or profile than a shallower stone. An elongated diamond may need prongs positioned differently from a round diamond. Vulnerable points or corners may benefit from additional protection.

This is one reason selecting the diamond and designing the ring together can be so useful.

Our companion guide, The Anatomy of an Engagement Ring , explains how the head, prongs, gallery, bridge, shoulders and shank work together around the center stone.

Diamond Anatomy and Bezel Settings

Bezel settings surround all or part of a diamond's perimeter with metal rather than relying only on individual prongs.

A designer still needs to consider the girdle, shape and total dimensions of the diamond when creating the bezel.

Learn more in our guide to bezel engagement rings .

Diamond Anatomy and Hidden Halos

Hidden halos are generally positioned beneath the center diamond around part of the head or gallery area.

The center diamond's depth and profile help determine how a hidden halo can be incorporated without compromising the proportions of the finished ring.

Read more about hidden halo engagement rings .

Why Measurements Matter When Comparing Diamonds

Carat weight alone tells you how much a diamond weighs.

Measurements tell you how that weight is distributed.

When comparing two diamonds, dimensions can help explain why one appears larger, more elongated or more substantial than another of similar weight.

For elongated stones, length-to-width ratio becomes particularly important because it influences the visual outline of the diamond.

Diamond Anatomy and Length-to-Width Ratio

Length-to-width ratio compares a diamond's length with its width.

This is especially useful for:

• Oval diamonds
• Radiant diamonds
• Cushion diamonds
• Emerald-cut diamonds
• Pear-shaped diamonds
• Marquise diamonds

Two oval diamonds with the same carat weight can have noticeably different silhouettes simply because one has a more elongated ratio.

How to Read Diamond Anatomy on a Grading Report

Depending on the diamond and laboratory, a grading report may include information such as:

• Measurements
• Table percentage
• Total depth percentage
• Girdle description
• Culet description
• Polish
• Symmetry
• Cut grade where applicable
• Additional proportion information

A report is extremely helpful for understanding a diamond, but it should complement—not completely replace—visual examination.

Does Diamond Anatomy Affect Value?

Yes, although diamond value is determined by many characteristics working together.

Poor proportions may negatively affect visible beauty or cause unnecessary carat weight to be hidden in the depth of the stone.

Cut quality, carat weight, color, clarity, shape, market conditions and diamond origin can all influence price.

What About Diamond Appraisals?

If you already own a diamond and need documentation, a professional appraisal is different from simply learning about diamond anatomy.

An appraisal may document the jewelry, gemstone characteristics, mounting and an appropriate value for its intended purpose.

Learn more about jewelry appraisals or read our guide to what to expect during a jewelry appraisal .

Questions to Ask When Comparing Diamonds

Rather than becoming overwhelmed by every measurement, start with a few practical questions:

• Do I like how this diamond looks with my own eyes?
• Does it look bright and lively in different lighting?
• Does the size look appropriate for its carat weight?
• Do I like the shape and proportions?
• Are there visible characteristics that bother me?
• Does it work with the engagement ring design I want?
• Is the price appropriate for my priorities?

Why Seeing Diamonds Side by Side Matters

One of the best ways to understand diamond anatomy is to compare actual diamonds.

Specifications that appear extremely different on paper can sometimes be surprisingly subtle in person. Conversely, two stones with similar grading information can have noticeably different visual personalities.

Side-by-side comparison allows you to judge brightness, shape, proportions, apparent size and overall beauty rather than buying entirely from numbers.

Choosing a Diamond for a Custom Engagement Ring

Diamond anatomy becomes even more useful when designing a custom ring because the mounting can be created around the exact dimensions and character of the chosen stone.

The head, prongs, gallery and profile can all be adjusted around the center diamond rather than forcing the diamond into a preexisting design.

Explore our custom engagement rings , custom ring designer or online ring design experience .

Learn About Diamonds in Chandler, Arizona

Diamond education does not need to feel intimidating.

At Christopher Fine Diamonds in Chandler, Arizona, clients can compare diamonds in person, discuss grading information and understand how a diamond's proportions relate to its actual appearance.

Whether you're considering a natural diamond, a laboratory-grown diamond or a completely custom engagement ring, the goal is to select a stone that looks beautiful to you—not simply the diamond with the most impressive list of numbers.
